02 Sensing & Perception · #5 of 46

Proprioception vs. Exteroception

Knowing yourself versus knowing the world

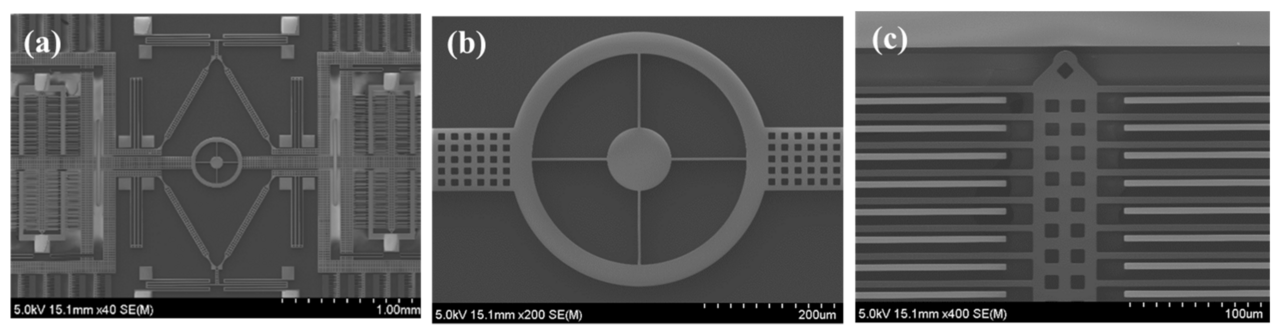

Scanning electron micrograph of a MEMS gyroscope, showing the etched silicon comb fingers and vibrating proof mass at microscopic scale. — A MEMS gyroscope: a vibrating tuning fork smaller than a grain of sand, etched into silicon. It feels itself turn. · Minh Ngoc Nguyen et al., CC BY 4.0

Close your eyes and touch your nose. You just used a sense most people can't name, and it's the same sense a robot leans on when the lights go out.

That sense is proprioception: the awareness of your own body's motion and configuration without looking. Its opposite is exteroception: sensing the world out there. Every robot ever built navigates with exactly these two, borrowed straight from the neuroscience of animals. Master the difference and you understand why robots get lost, and how they find themselves again.

Proprioception: the robot feeling itself

A proprioceptive sensor never looks outside. It measures the robot's own state: how fast a wheel spun, how hard the body accelerated, how quickly it yawed. Wheel encoders count ticks. Accelerometers feel pushes. Gyroscopes feel rotation. None of them care what the world looks like; they only report what the body did.

The headline example is the MEMS gyroscope above: a microscopic tuning fork that vibrates millions of times a second. Spin it, and the Coriolis effect nudges the vibration sideways by a hair. That nudge is the turn rate. It is purely internal: a gyro on the Moon or at the bottom of the sea reads the same way, because it senses nothing but itself.

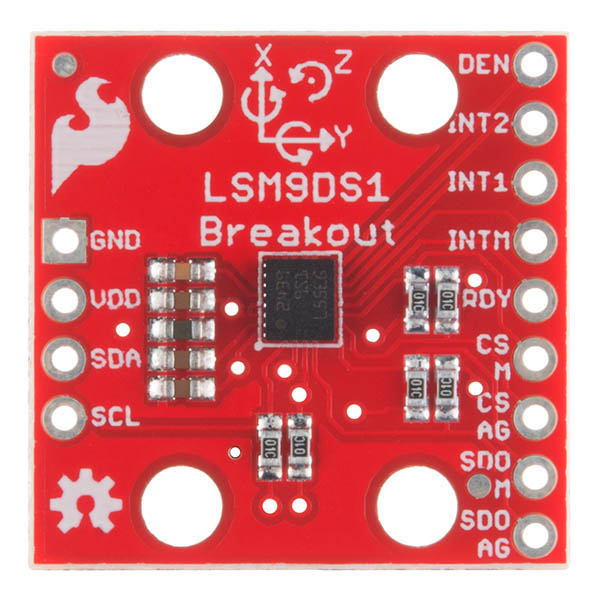

A 9-DoF IMU breakout board carrying an accelerometer, gyroscope, and magnetometer behind a row of solder pads. — A 9-DoF IMU packs an accelerometer, gyroscope, and magnetometer onto one fingertip-sized board, and every one of them reports the robot's own motion rather than anything in the world around it. · SparkFun, CC BY 2.0

The killer feature of proprioception is that it is always available. No landmark required, no clear line of sight, no good lighting. Just integrate your own motion forward in time. Sailors called this dead reckoning: take your speed, your heading, and the clock, and you can compute where you must be.

And here is the catch that haunts the rest of this course. Proprioception only ever tells you about change. To know where you are, you must add up every change since the start, and every measurement carries a sliver of error. Those slivers don't cancel. They accumulate. Dead reckoning uses proprioception alone, and so it drifts without bound: the longer you go unchecked, the more wrong you get, forever.

The bug that swung the arm 180 degrees

Take the simplest absolute encoder: a disc with rings of slots, and a contact reading each ring as a 1 or 0. Number the slots in plain binary and you hit a nasty trap. When the shaft crosses from 179.9 to 180.1 degrees, the code should flip from 011 to 100, three bits at once. But the contacts never switch at exactly the same instant. For a sliver of time the reader sees a garbage value that belongs to a totally different angle. On a robot arm that one bad reading can look like the joint just teleported across the workspace, and the controller may yank the arm back through 180 degrees to "fix" it, smashing whatever was in the way. The cure is to renumber the slots so neighbours never differ by more than one bit. That is Gray code, and most absolute encoders are cut that way for exactly this reason.

Why Gray code makes the glitch impossible

The problem with plain binary is that adjacent positions can differ in several bits at once, and physical contacts switch one at a time. Walk the boundary at 180 degrees in 3-bit binary:

position 3  ->  0 1 1
position 4  ->  1 0 0   (three bits change)

If contact 1 flips first, the reader briefly sees 1 1 1, which is position 7. The shaft "jumps" to 7, then settles back to 4. Gray code fixes this by guaranteeing that any two neighbouring codes differ in exactly one bit:

position 3  ->  0 1 0
position 4  ->  1 1 0   (one bit changes)

Now a boundary crossing can only ever toggle a single contact, so the worst a misaligned reader can do is lag between the old code and the new one. There is no third value to glitch into. You can even fold a Gray-coded disc down to a single ring read by offset sensors, the single-track Gray code, which is how a basic quadrature encoder gets away with two sensors on one track instead of a separate ring per bit.

The box that flew to the Moon

The Apollo spacecraft carried a proprioceptive sense organ at its core: a hefty inertial measurement unit packed with two kinds of sensor. Spinning gyros, the Inertial Reference Integrating Gyros, watched the ship's attitude, while pendulous accelerometers, the Pulse Integrating Pendulous Accelerometers, felt every change in velocity. Add those up over time and you get position, the same dead reckoning a wheeled robot does on a warehouse floor, just pointed at the Moon. The unit could not see stars, planets, or Earth on its own. It only knew how the ship had moved. So the crew periodically had to look outside and take star sightings by hand to reset the accumulating drift, which is exactly the proprioception-plus-exteroception rhythm this whole chapter is about, running at 240,000 miles from home.

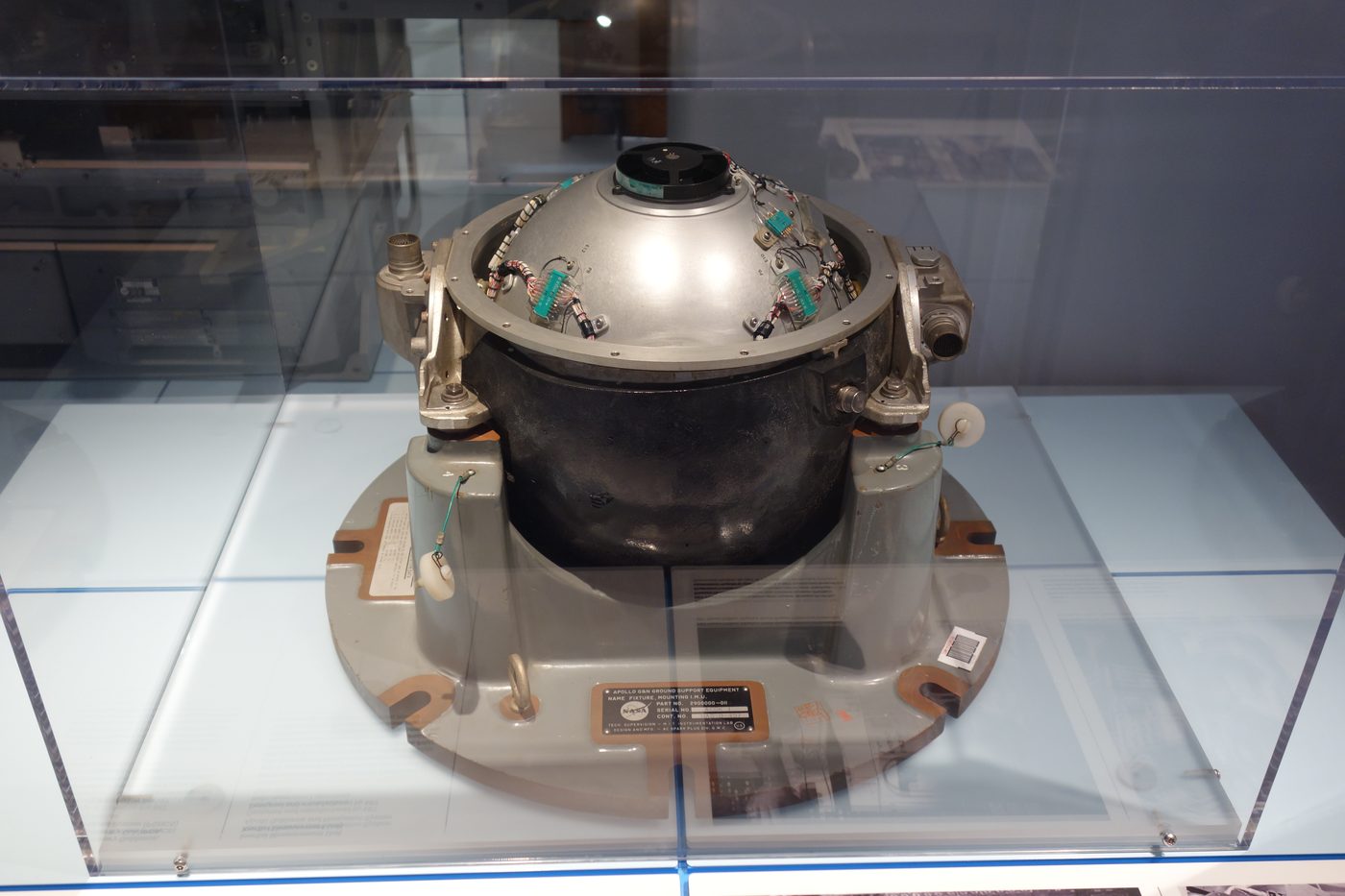

The spherical Apollo guidance-and-navigation inertial measurement unit on museum display, its polished case ringed with connectors and wiring. — The Apollo inertial measurement unit: a roughly basketball-sized sphere of spinning gyros and pendulous accelerometers that felt every move the spacecraft made. It could not see the Moon, only sense how the ship had turned and accelerated, so the crew reset its drift with hand-aimed star sightings. · Daderot, CC0 (MIT Museum)

Exteroception: the robot seeing the world

The cure is to look outside. An exteroceptive sensor measures the world relative to the robot: a camera sees walls and signs, a lidar paints the room in millions of laser dots, sonar hears an echo bounce back. These sensors don't tell you what you did. They tell you where you are, by anchoring you to something real and external.

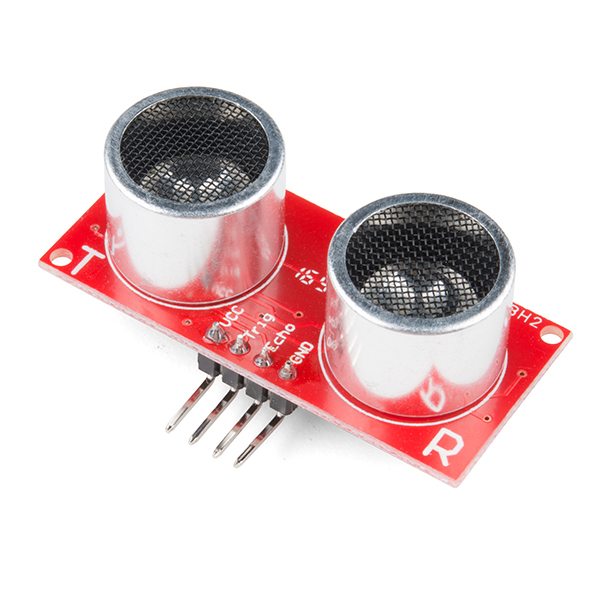

An HC-SR04 ultrasonic rangefinder with its two cylindrical transducers facing forward like a pair of eyes. — The HC-SR04 ultrasonic rangefinder pings the world with a burst of sound and times the returning echo, a few-dollar exteroceptive sensor that measures distance to whatever is out there. · SparkFun, CC BY 2.0

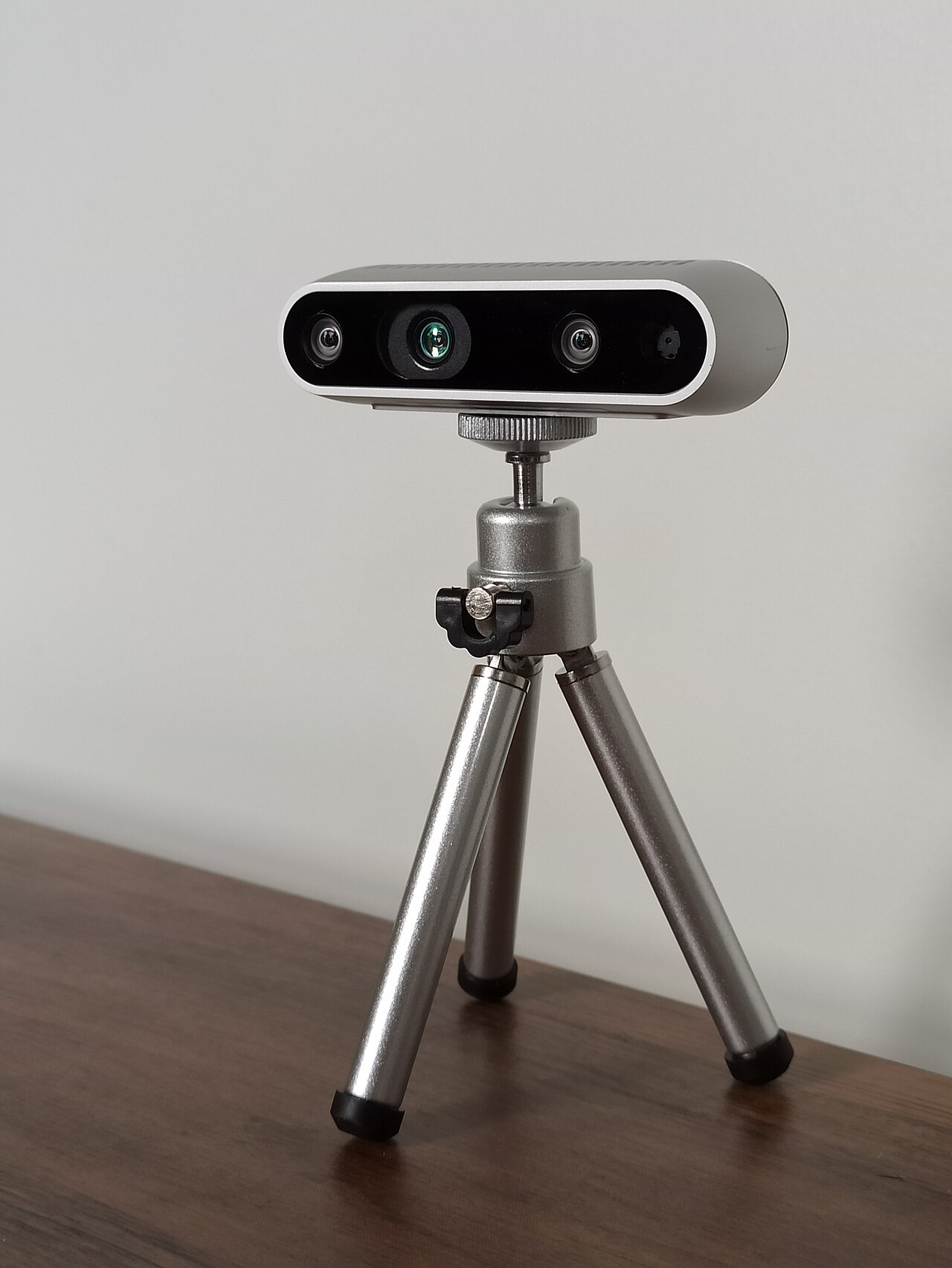

An Intel RealSense D435 stereo depth camera: a small bar with several lenses that measures distance to whatever is in front of it. — A depth camera is a pure exteroceptive sensor: it looks outward and measures the world directly, anchoring the robot to walls and objects it cannot fake. This is how a robot catches when its own dead reckoning has drifted. · Marc Auledas, CC BY-SA 4.0

Lidar started as a moon-bouncing rifle

The lidar a self-driving car leans on traces back to the laser. In 1961, a year after the laser was invented, Hughes Aircraft built the first laser ranging system and called it Colidar, from "coherent light detecting and ranging," straight off the word radar. Two years later they shipped the Colidar Mark II, a rifle-shaped rangefinder with an 11-kilometre reach and accuracy of about 4.5 metres, meant for military targeting. The word "lidar" itself first showed up in print in 1963 describing efforts to study the Moon by bouncing laser light off it. By the 1971 Apollo 15 mission, astronauts were mapping the lunar surface with a laser altimeter, and today the same time-of-flight trick guides cars, helps land spacecraft, and flew aboard NASA's Ingenuity helicopter on Mars.

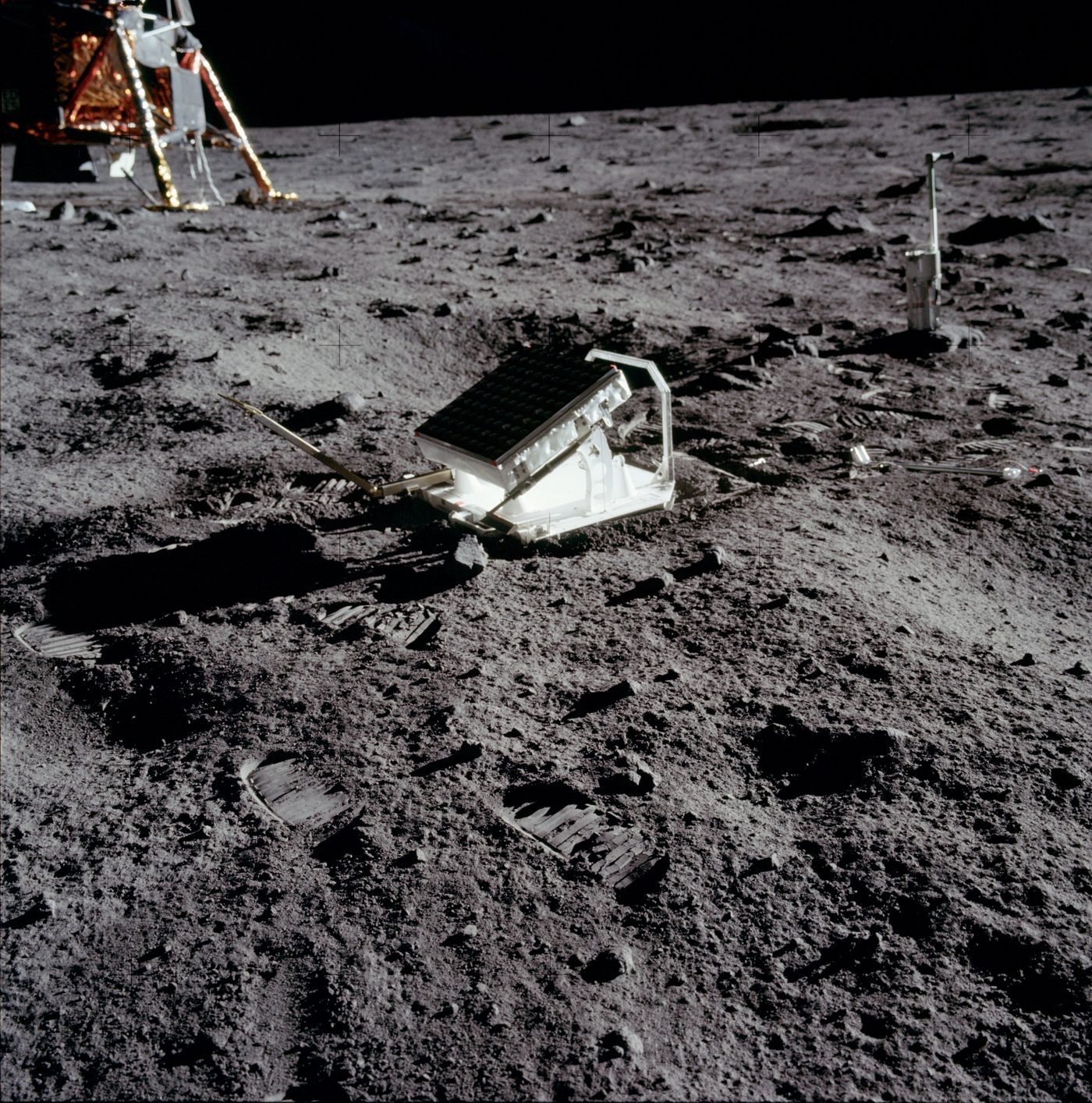

The Apollo 11 laser ranging retroreflector, a suitcase-sized panel of mirrors, sitting on the grey lunar surface with the lunar module and astronaut bootprints behind it. — Apollo 11's laser ranging retroreflector, left on the Moon in 1969. Observatories still fire laser pulses at it and time the echo to measure the Earth-Moon distance to within millimetres, the same time-of-flight trick a self-driving car's lidar uses, just 384,000 km long. · NASA, public domain

Exteroception has the opposite personality of proprioception. Its error does not accumulate: recognise the same doorway twice and your position snaps back to truth, wiping out an hour of drift in a single frame. But it is not always available. Lidar struggles in heavy rain; cameras go blind in the dark or a featureless white corridor; a recognisable landmark might simply not be in view. And every exteroceptive reading is noisy and occasionally a flat lie: a reflection, a moving pedestrian, a mirror.

Why each one fails alone

Stack the two side by side and a painful symmetry appears:

Proprioception is smooth, fast, and never unavailable, but it drifts forever.
Exteroception is drift-free and absolute, but it is noisy, intermittent, and sometimes wrong.

Run a robot on proprioception alone and it confidently strolls off a cliff, certain it's still in the hallway. Run it on exteroception alone and it twitches: every noisy frame yanks the estimate around, and the instant a landmark vanishes, it's blind. Neither sense is sufficient. Each one's weakness is precisely the other's strength.

Watch the symmetry play out. The robot below drives a loop and tracks itself by dead reckoning alone, integrating noisy wheel odometry. Its belief (the solid track) peels away from the true path (dashed) and its uncertainty bubble swells, exactly the proprioceptive failure. The cure is a single exteroceptive fix: sighting a known landmark snaps the belief back onto truth and collapses the bubble in one frame. Crank the odometry noise and the drift accelerates; let the fixes lapse and it runs away again.

steps 0 · fixes 0 · position error 0.00 m · uncertainty σ 0.00 m

The robot drives a loop. The solid accent track and arrow are its dead-reckoning belief from noisy wheel odometry (proprioception), drifting away from the dashed true track while the uncertainty bubble swells. Sighting a known landmark (diamond) is an exteroceptive fix: it snaps the belief back onto truth and collapses the bubble. Turn on auto-fix to sight a landmark automatically when the robot drives near one, or hit Sight landmark yourself.

odometry noise 0.40

The whole game: fusing the two

So the answer is never to choose. The answer is to fuse them: to let smooth, always-on proprioception carry you between exteroceptive fixes, and let each external observation periodically snap the accumulated drift back to reality. Predict with your body's motion; correct with the world. That rhythm, repeated dozens of times a second, is the beating heart of every localization system ahead.

Why fusion is the only way: the bias-availability trade-off

Write the two sources in terms of their errors. A proprioceptive estimate integrates motion, so its variance grows roughly linearly with the number of steps $n$ :

\sigma_{\text{prop}}^2(n) = n\,\sigma_{\text{step}}^2

It is dense in time (a reading every millisecond) but its uncertainty has no ceiling: it climbs forever.

An exteroceptive measurement has a fixed, bounded variance $\sigma_{\text{ext}}^2$ that does not grow with time, but it arrives only when a landmark is visible, so it is sparse and sometimes absent entirely.

The optimal way to merge two independent estimates of the same quantity is the inverse-variance weighted average:

\hat{x} = \frac{\sigma_{\text{ext}}^2\,x_{\text{prop}} + \sigma_{\text{prop}}^2\,x_{\text{ext}}}{\sigma_{\text{prop}}^2 + \sigma_{\text{ext}}^2}

Notice what this does automatically. While drift is small, $\sigma_{\text{prop}}^2$ is tiny and the fusion trusts the body. As drift accumulates and $\sigma_{\text{prop}}^2$ swells, the same formula leans harder on the external fix, exactly when you need it most. This single equation, applied recursively over time, is the Kalman filter. The next chapter builds it.

Key takeaways

Proprioception senses the robot's own motion (encoders, IMU, gyros). Always available, smooth, but drifts without bound because it only measures change.
Exteroception senses the outside world (cameras, lidar, sonar). Drift-free and absolute, but noisy, intermittent, and occasionally wrong.
Dead reckoning is proprioception alone, and that is exactly why it drifts.
Neither sense works alone. Fusing them (predict with the body, correct with the world) is what makes either one useful, and it's the engine of every filter ahead.

Two senses, two failure modes, one cure. The body that feels itself moving will always slowly lose the thread; the eye that reads the world can't see in the dark. But weave them together, feel between glances, glance to reset the feeling, and a machine can cross a city, a warehouse, or another planet without ever staying lost for long.

That weave has a name. We'll learn to spell it next: the filter.
