Swarm Sandbox

You have spent this whole phase collecting behaviours like tools: flocking for coordinated motion, goal-seeking for purpose, obstacle avoidance for survival. Individually, each is simple and well-mannered. Stack all three onto the same agent and they stop cooperating. They start negotiating, and you are the one who sets the terms.

Build a swarm, then watch it argue

The sandbox below is the capstone. Every dot runs the same four-term controller, and the sliders set how loudly each term gets to vote. Move the goal and the swarm chases it. Crank cohesion and it clumps. Somewhere in between is your swarm.

Try this:

1. Pure goal-seek. Drop cohesion and alignment to near zero, max out goal-seek. The flock dissolves into a panicked sprint: fast to the target, but a smear, not a swarm. Watch the collision count climb.
2. Pure cohesion. Now invert it: max cohesion, kill goal-seek. The agents huddle into a tight, beautiful, completely useless ball that never goes anywhere.
3. Find the seam. Nudge both up together and hunt for the setting that arrives and stays in formation. Tap "Move goal" (or click the canvas) to relocate the target and stress-test your tuning against a fresh chase.

The thing you just felt in your fingertips is the entire discipline: more cohesion means fewer collisions but slower arrival. Tighten the flock and bodies stop colliding, but the group also stops committing to the goal. Loosen it and they sprint, straight into each other. There is no slider position that wins everything. That tension is swarm design.

Why the objectives fight

Each term is a vector pulling the agent somewhere, and they rarely point the same way. Separation says back off. Cohesion says come closer. Goal-seek says that way, now. Alignment says match the crowd. The controller just sums them, so the swarm's behaviour is a tug-of-war, and the slider weights decide who wins each pull.

Tune one objective up and you almost always pay somewhere else. Crank goal-seek and arrival time drops, but collisions spike. Crank cohesion and collisions vanish, but the swarm dawdles. You can't have all three maxed at once, and pretending otherwise is how real swarms fly into walls. This is the multi-objective trade-off, and there is no setting that dominates every metric. The best you can do is pick which losses you can live with.

↘ Why there's no single 'best' swarm: the Pareto front

When you optimize for several things at once, you minimize a vector of objectives rather than a single number:

$$\min f(x) = \big[\, f_1(x),\; f_2(x),\; \ldots,\; f_k(x) \,\big]$$

Here $f_1$ might be arrival time, $f_2$ energy spent, and $f_3$ collisions, while $x$ is your slider setting. The trouble is that no single $x$ minimizes all of them together. Instead we talk about dominance: a setting $x$ dominates $y$ when it is at least as good on every objective and strictly better on one,

$$\forall i:\; f_i(x) \le f_i(y) \quad\wedge\quad \exists j:\; f_j(x) < f_j(y).$$

The settings that nobody dominates form the Pareto front: the set of honest trade-offs, where improving any one objective forces another to get worse. Every point on that front is a legitimate "best" swarm; which one you want depends entirely on what you're willing to sacrifice.

To actually pick, you collapse the vector into one score with weights that encode your priorities:

$$S = w_1 \cdot \text{time} + w_2 \cdot \text{energy} + w_3 \cdot \text{collisions}.$$

Those weights are the sliders. Choosing them is not solving the problem; it is stating which problem you wanted to solve.

The flashiest swarms are robots, but the most profitable ones move money, not light. The same local-rules trick that keeps your dots in formation also routes data through the internet, schedules deliveries, and steers the orange robots that haul shelves around an Amazon warehouse. Amazon bought the company behind those robots, Kiva Systems, in 2012 and now runs them by the hundreds of thousands.

Key takeaways

• A real swarm is a sum of competing behaviours (flocking, goal-seeking, obstacle avoidance), not a single rule.
• More cohesion means fewer collisions but slower arrival. Every objective you favour costs you another. Multi-objective tuning is the entire game.
• There is no universally best parameter set. The Pareto front holds all the honest trade-offs; the weights you pick declare which one you wanted.

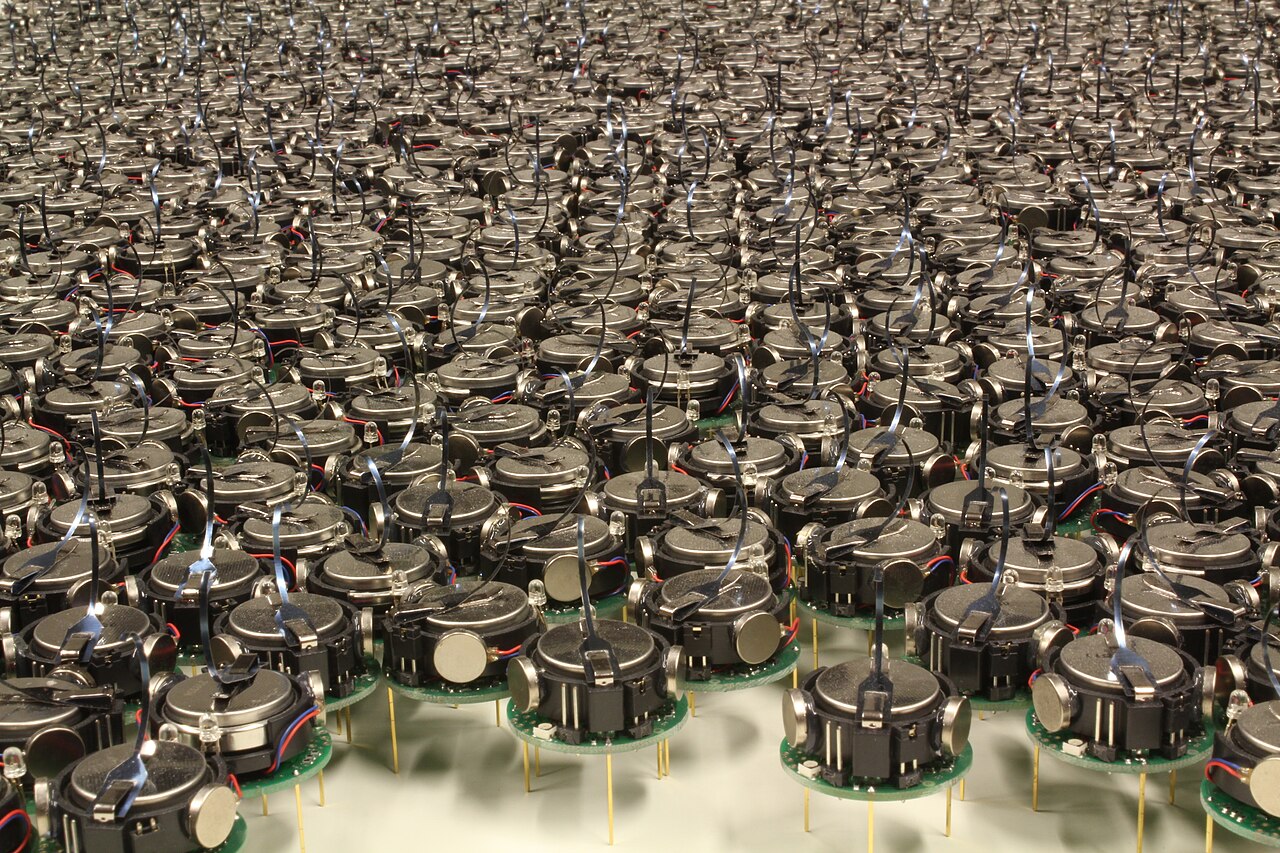

• Kilobots and drone shows live in exactly this trade-off space; the sliders are not a simulation of the problem, they are the problem.
