Capstone: Inverted Pendulum

A normal pendulum hangs down and settles: disturb it and gravity quietly pulls it home. Flip it over and balance it above its pivot, and the whole logic inverts: gravity now amplifies every error. Lean a hair off vertical and it leans harder, faster, until it slams flat. There is no resting on it. The only way to keep an inverted pendulum upright is an active controller measuring the tilt and shoving the base back under the falling tip, over and over, forever.

Catch the broom yourself

Below is the textbook version: a pole hinged on a cart that can only slide left and right. The controller watches four numbers (cart position, cart speed, pole angle, pole angular speed) and computes one number back: how hard to push the cart. Grab the pole tip, yank it sideways, and let go. Watch the cart dart under it to catch the fall.

Drag the pole, let go, watch it recover

reset

K_x (cart pos) 2.0 K_ẋ (cart vel) 5.0 K_θ (angle) 60.0 K_θ̇ (angle rate) 12.0

stable preset snappy preset no derivative (watch it ring) small knock

x (cart) —

θ (angle) —

u (force) —

status balanced

what to try

• First, leave defaults alone and click small knock a few times. The pole wobbles but the controller pulls it back. Status stays "balanced." This is stabilizing an open-loop-unstable plant.
• Drag the pole tip sideways and release. With defaults you can usually recover from ~25° tilt. Push past that and it falls. The linearization breaks down too far from upright, and the controller can't catch it.
• Click "no derivative (watch it ring)" to set K_θ̇ = 0. Now knock the pole. It oscillates uncontrollably and falls. This is classical "P without D": the controller knows where the pole is, but not where it's going. Restore K_θ̇ and the ring vanishes.
• Set K_x and K_ẋ to 0. Knock the pole. It balances but the cart slides off-screen. The controller doesn't care about cart position, only the pole. Add both gains back; the cart returns home while the pole stays vertical.
• Set K_θ = 0. The pole has no feedback at all. It falls immediately. Reset.

The controller here is the simplest thing that works: a linear feedback law. Multiply each of the four state numbers by a gain, add them up, and that sum is the force on the cart. The four sliders are those four gains, and a bigger gain means the controller cares more about that one thing. Two of the gains watch the pole (angle and its rate), and two watch the cart (position and its rate) so it does not balance the broom beautifully while wandering off the edge of the world.

The magic word is unstable equilibrium. Upright is a balance point, but a knife-edge one. The controller's whole job is to manufacture stability that the physics refuses to provide: to take a plant that diverges on its own and bend it back toward the point it keeps trying to leave.

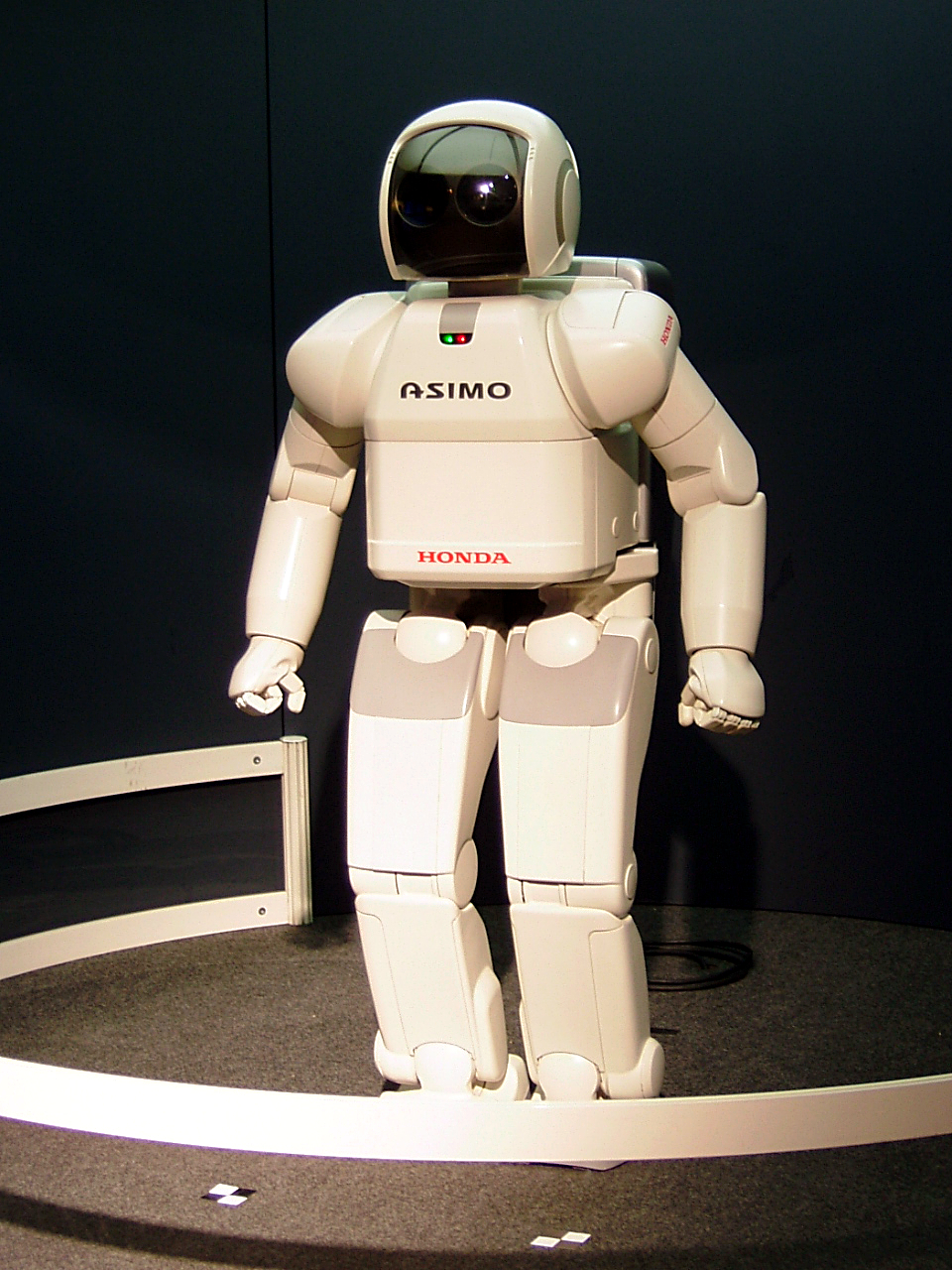

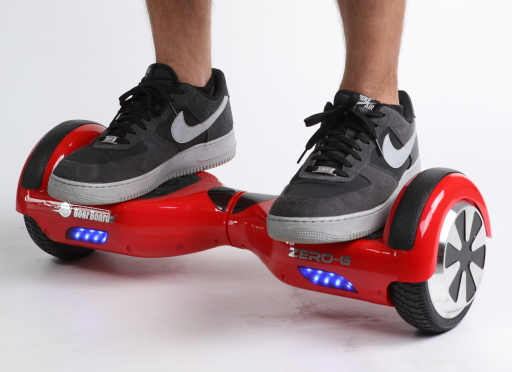

This is not an academic curiosity dressed up as one. The same falling-broom math is what keeps a Segway under its rider, what holds a rocket balanced on its own thrust as it lands tail-down, and what stops a humanoid robot from face-planting the moment it lifts a foot. Each one is a top-heavy mass that wants to fall, with a controller frantically moving its base to stay underneath.

What the sliders teach you

Each gain is a different kind of attention, and you can break the controller in instructive ways:

• Kill the angle-rate gain (the "no derivative" preset). The controller now knows where the pole is but not where it is going. It overcorrects, the pole rings back the other way, overcorrects again, and falls. This is the same lesson PID taught: position feedback without rate feedback oscillates.
• Zero the two cart gains. The pole balances perfectly, and the cart calmly slides off the screen. The controller was never told to care where the cart is, only the pole, so it happily drifts to infinity while keeping the broom vertical.
• Zero the angle gain. No feedback on the thing that matters. It falls instantly.
• Drag too far. Past roughly 25° the linear law that assumes "small tilt" stops describing reality, the controller's arithmetic no longer matches the physics, and it cannot catch the fall.

↘ The math: cart-pole dynamics and the linear feedback law

The cart-pole has four states: cart position and velocity, pole angle and angular rate.

$$\mathbf{s} = (x,\ \dot{x},\ \theta,\ \dot{\theta})$$

With cart mass $M$, pole mass $m$, pole half-length $l$, and gravity $g$, Newton's laws give the nonlinear dynamics the demo integrates with Runge–Kutta. Writing $s_\theta = \sin\theta$ and $c_\theta = \cos\theta$:

$$\ddot{x} = \frac{u + m\,s_\theta\,(l\,\dot{\theta}^2 - g\,c_\theta)}{M + m\,s_\theta^2}$$$$\ddot{\theta} = \frac{-u\,c_\theta - m\,l\,\dot{\theta}^2\,s_\theta\,c_\theta + (M + m)\,g\,s_\theta}{l\,(M + m\,s_\theta^2)}$$

The control input $u$ is the horizontal force on the cart. The controller is a single linear feedback law on all four states:

$$u = K_x\,x + K_{\dot{x}}\,\dot{x} + K_\theta\,\theta + K_{\dot{\theta}}\,\dot{\theta}$$

The four sliders are exactly $K_x,\ K_{\dot{x}},\ K_\theta,\ K_{\dot{\theta}}$. Choosing those four gains so the closed-loop system drives every state to zero is the heart of state-feedback design: pole placement and the linear-quadratic regulator are just principled recipes for picking them. The demo also saturates $u$ at $\pm 35\,\text{N}$, because real actuators cannot push infinitely hard, and resets if the pole passes $90°$ from vertical, where the small-angle assumptions behind the linear law have long since stopped being true.

↘ The cheat: balance a pendulum upside down with no controller at all

Everything so far says you need an active controller. There is one weird exception. Take an inverted pendulum and, instead of moving the base sideways, just shake it straight up and down fast enough. The pole will stand upright on its own and snap back when you nudge it, with no sensor and no feedback law anywhere. This is Kapitza's pendulum, named for the Russian physicist Pyotr Kapitza, who worked out the math for it. If the base wobbles as a simple sine wave, the pole's motion obeys this driven equation:

$$\ddot{\theta} - \frac{g}{\ell}\sin\theta = -\frac{A}{\ell}\,\omega^2 \sin(\omega t)\,\sin\theta$$

Here $A$ is how far the base shakes and $\omega$ is how fast. For small swings this is closely approximated by the famous Mathieu equation. Shake slowly and the pole falls like you would expect. Shake fast enough and that rapid $\omega^2$ term averages out into an effective force that pulls the pole back toward vertical. The stability is not from a brain reacting to error, it is baked into the physics of the fast wiggle. It is the closest thing control theory has to a free lunch, and it is a useful reminder that "unstable" is a statement about a system in a particular setting, not a life sentence.

You are the most common inverted pendulum on Earth. Stand up straight and you are a top-heavy mass balanced on two small feet, and you never actually stop moving: your body sways a little the whole time, and tiny muscle tweaks catch each lean before it grows. The controller doing this is your nervous system, and it is reading more sensors than the demo above ever gets.

Key takeaways

• An inverted pendulum sits at an unstable equilibrium: gravity amplifies error instead of correcting it, so it stays up only under active feedback.
• A linear feedback law on the four states ($x$, $\dot{x}$, $\theta$, $\dot{\theta}$) is enough to stabilize it; the four gains are four kinds of attention, and zeroing any of them breaks the balance in a characteristic way.
• The angle-rate gain is the derivative term in disguise: without it the pole rings and falls, the same failure PID warned about.
• It is the model behind Segways, thrust-balanced rocket landings, and walking humanoids: every top-heavy machine that refuses to fall.
